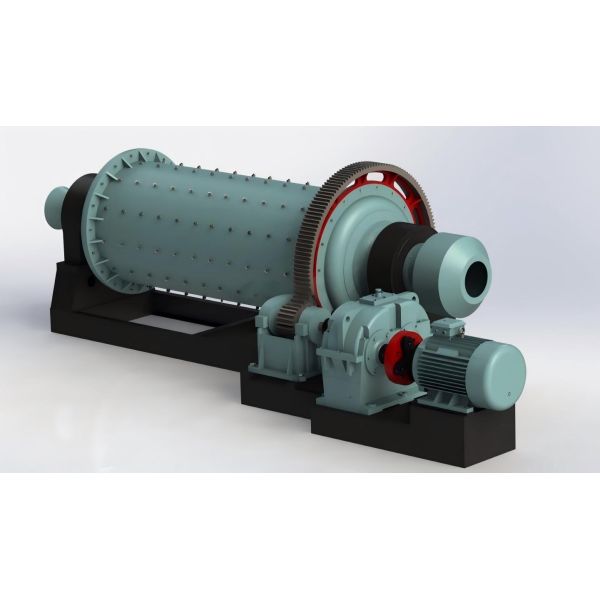

Continuous Ball Mill Mineral Grinding Equipment For Mining & Metallurgy

Continuous ball mill

1.Product Introduction

A Continuous Ball Mill is an industrial grinding machine characterized by its continuous feeding and discharging mechanism. Unlike traditional batch ball mills, it is capable of 24-hour non-stop operation, making it particularly suitable for large-scale, high-efficiency production environments.

2.Application

• Mining & Metallurgy: Used for both wet and dry grinding of ores such as copper, limestone, and magnesium.

• Cement Industry: A critical piece of equipment used to grind clinker into fine cement powder.

• Ceramics & Chemicals: Employed for the ultra-fine grinding of zirconium silicate and ceramic raw materials, capable of producing ultra-fine slurries with $D_{50} < 1 mu m$ (equivalent to over 10,000 mesh).

• Food Industry: Used for grinding cocoa beans, nut butters (peanut, almond), and grains. Ceramic linings are often used in these cases to ensure zero metal contamination.

3.Working Principle

Material is fed continuously into one end of the ball mill. As the cylinder rotates, the internal grinding media (such as steel or ceramic balls) impact, grind, and pulverize the material. As new material is constantly introduced, the processed material that has reached the required fineness is pushed toward the other end and discharged continuously. This design creates a steady flow, eliminating the energy loss and downtime associated with frequent starts and stops, thereby significantly boosting production efficiency.

4.Advantages

• High Throughput: Ideal for large-scale production lines in the cement, mining, chemical, and ceramic industries, with processing capacities reaching several tons per hour or more.

• High Degree of Automation: Can be fully integrated with feeding, conveying, and control systems to achieve unmanned or low-labor operation, reducing overall labor costs.

• Uniform Particle Size: Because the residence time of the material within the mill is relatively stable, it produces a more consistent final product fineness.

• Energy Efficient: Compared to batch mills, continuous ball mills can save approximately 10%–20% in energy for the same output while reducing total grinding time.

5.Technical Specifications
